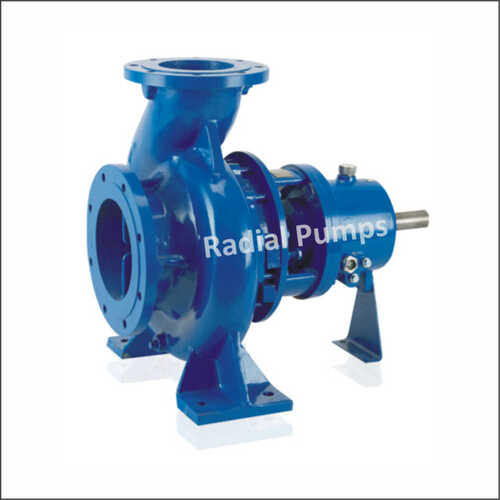

Stainless Steel Industrial Process Pump

Product Description

Operating RangeCapacity : Up to 2200 M3/hrHead : Up to 150 mtrDischarge Size : 25 mm to 300 mmTemperature : Up to 350CPressure : Up to 15 Kg/cm2Speed : Up to 3500 rpmMaterialof ConstructionC. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze,Alloy-20, CD4MCU Hast alloy B & C, etc.Duplex stainless steel, Super duplex stainlesssteel,Applications Hot & cold water circulation, cooling water circulation. Drip irrigation, water supply and building services. Thermic fluid, Jet dyeing, volatile fluids. Condensate handing, firefighting system, ETP/STP. Engineering, marine, refrigeration and cooling tower. Chemicals, petrochemicals, refineries, sugar, pulp &paper, laminates industries. Power plants, desalination plants, steel plants, rubber, Organic and inorganic chemical, DM water, sea water. Food, salt, textile and general industries services. Corrosive and abrasive process chemicals like acids, alkalis, Solvents, slurries, hydrocarbons, crystallizing liquids, nitric, Ammonia, fertilizer, hos hate. Chemical effluents.Features Back pull out design. Conforming to DIN 24256/ISO 2858 Dimensions High efficiency hydraulic design. Heavy duty shaft, sleeve and bearings. Low NPSH. Noise and maintenance free. Single & double mechanical seal. Closed impeller with multi vane providing axial balancing of impeller loads. Steady head and capacity. One roller bearing on pump end, two angular contact ball bearings. Grease or oil lubricated bearings Several flange drilling options according to valid standards. Suitable with V-belt drive or direct coupled with a motor. Foot and centerline mounting options. Can be supplied bare-shaft or with IE3 motors for energy saving.
